SINGLE PON GPON OLT

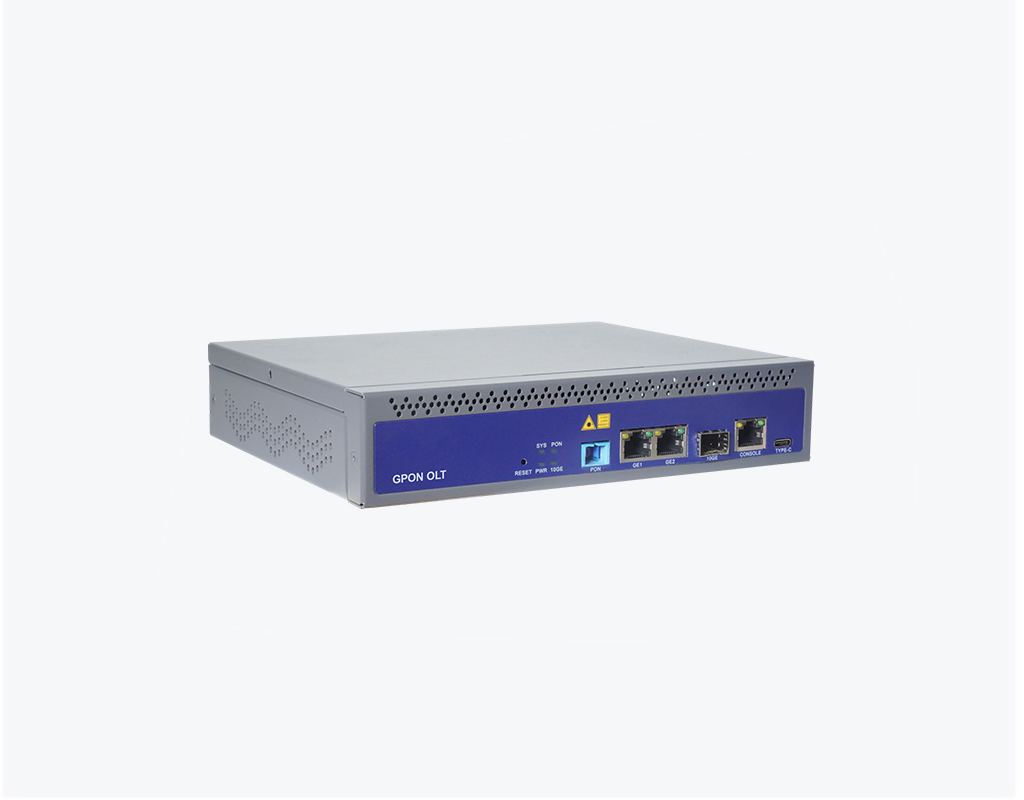

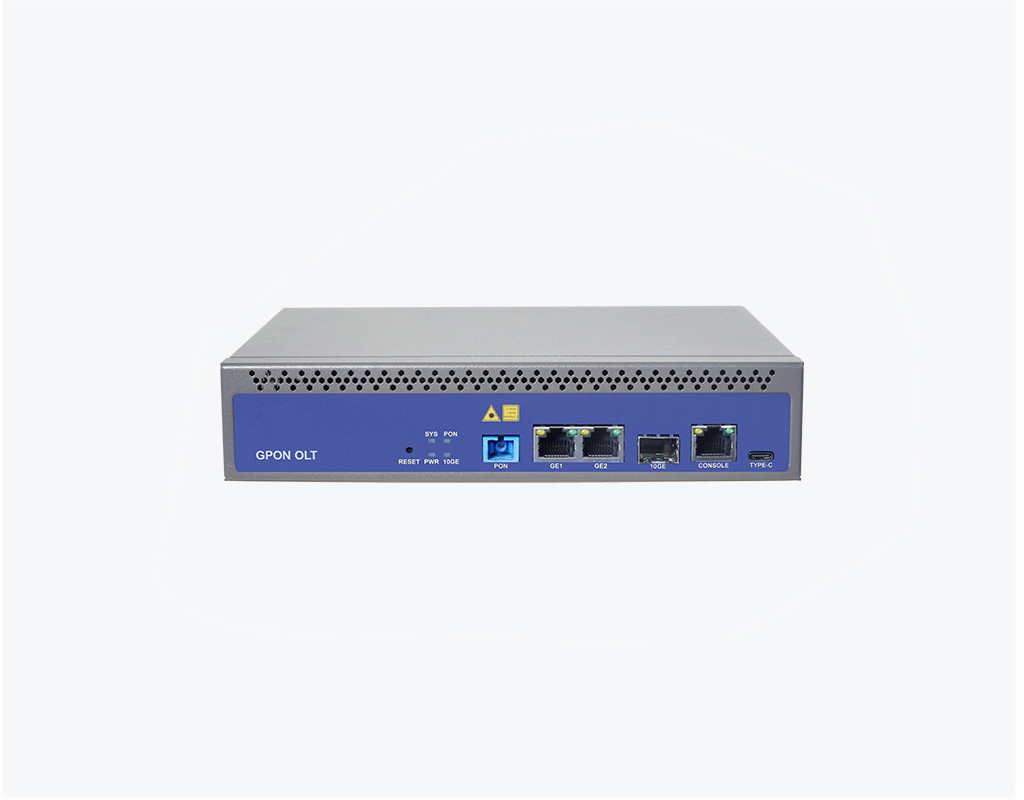

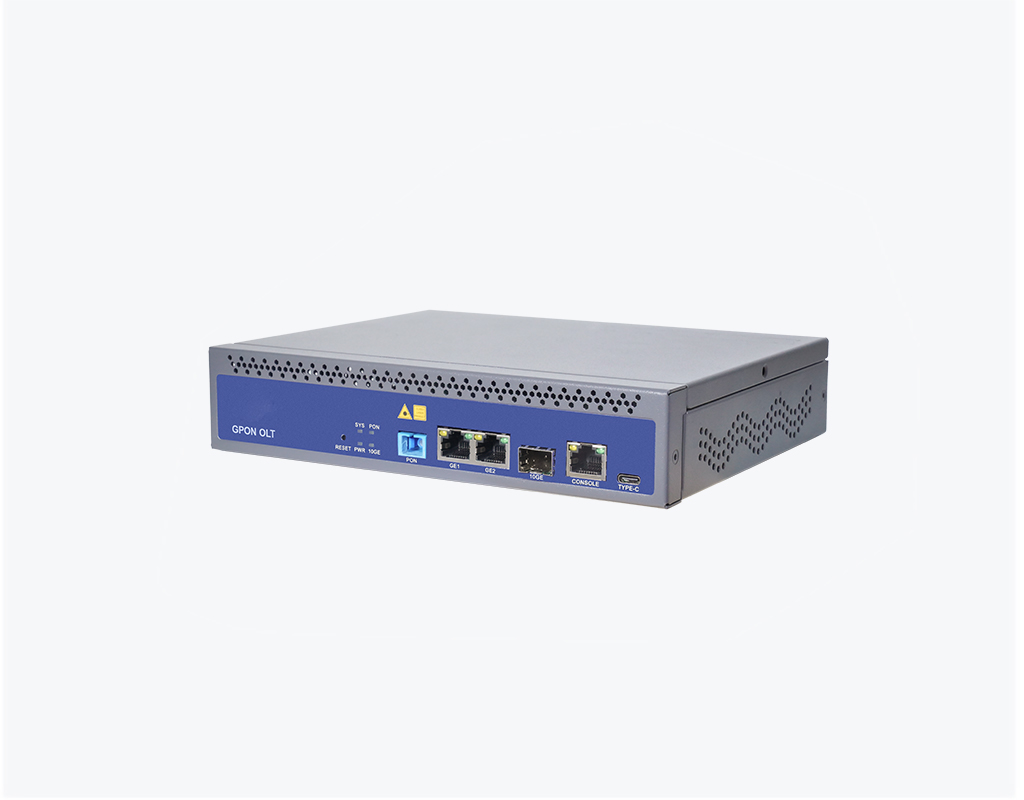

V1600GS is a box-type GPON OLT with one PON port. The price of V1600GS is very attractive and the performance is very strong. The splitting ratio of its PON port is 1:128, and the farthest transmission distance is 20KM. Its uplink and downlink bandwidth is as high as: 1.25Gbps/2.5Gbps. V1600GS can be widely used in FTTH, SOHO, small business office and other application scenarios.

High Performance Chipset

The device is equipped with a high-performance chipset, which ensures stable operation and strong processing capabilities, providing efficient data transmission and processing performance.

Built-in PON Optic Module

It features a built-in PON (Passive Optical Network) optic module, which supports GPON (Gigabit Passive Optical Network) standards. This allows for high-speed data transmission over long distances, with a maximum transmission distance of up to 20KM and a splitting ratio of 1:128.

Mini Metal Shell

The device has a mini metal shell design, making it compact, lightweight, and easy to install in various environments. The small size allows for flexible deployment in limited spaces.

Easy Deployment

The device is designed for easy deployment, with plug-and-play functionality and simple configuration. It can be quickly installed and set up in different scenarios, such as FTTH (Fiber to the Home), SOHO (Small Office/Home Office), and small business offices.

10GE(SFP+) Uplink

It provides a 10GE(SFP+) uplink port, which supports high-speed data transmission up to 10Gbps. This allows for efficient connection to core network devices and ensures high-bandwidth and reliable data transmission.

Applications

This device is widely used in various scenarios, including FTTH, SOHO, small business offices, and other application scenarios. It can also be used for "Triple-Play" VPN, IP Camera, Enterprise LAN, and ICT applications.




Quick Details of V1600GS Single Port GPON OLT



GPON Ports

•    1 GPON OLT SFP slots

•    Up to 2.5Gbps downstream and 1.25Gbps upstream

•    Maximum transfer distance of up to 20km

•    Each PON port supports up to 128 ONT/HGU

•    Compliant with G.984/G.988



GPON Function

•    Tcont DBA

•    Gemport traffic

•    In compliant with ITU-T984.x standard

•    Up to 20KM transmission Distance

•    Support data encryption, multi-cast, port VLAN, separation, etc

•    Support ONT auto-discovery/link detection/remote upgrade of software

•    Support VLAN division and user separation to avoid broadcast storm

•    Support power-off alarm function, easy for link problem detection

•    Support broadcasting storm resistance function



Layer2 Feature

•    1K Mac address

•    Support 4096 VLANs

•    Support port VLAN

•    Support VLAN tag/Un-tag, VLAN transparent transmission

•    Support storm control based on port

•    Support port isolation

•    Support port rate limitation

•    Support 802.1D and 802.1W

•    Access control list

•    IEEE802.x flow control

•    Port stability statistic and monitoring



Management Function

•    Telnet, CLI, WEB;

•    Port Status monitoring and configuration management

•    Online ONT configuration and management

•    User management

•    Alarm management
