16 Ports GSM-LTE VoIP Gateway

GSM/LTE VoIP Gateway is a device that acts as a bridge between a GSM/LTE mobile network and VoIP (Voice over IP) networks. It enables communication between 4G/3G/2G networks (using cellular SIM cards) and IP-based networks (using VoIP protocols). Moreover,it allows users to build their own application software to send SMS/USSD messages or bulk SMS messages, or push their text messages from email, HTTP etc.

Key features of GSM/LTE VoIP gateway:

  • Channel Capacity: support up to 16 channels, allowing for simultaneous GSM or LTE connections for voice calls or SMS.
  • Network Compatibility: The gateway is compatible with various network technologies, including LTE-FDD (Frequency Division Duplex), LTE-TDD (Time Division Duplex), WCDMA (Wideband Code Division Multiple Access), and GSM networks.
  • VoIP Platform Compatibility: The gateway is designed to work seamlessly with mainstream VoIP platforms, ensuring compatibility and interoperability.
  • Hot Swappable SIM Cards: The gateway supports hot-swappable SIM cards, allowing for easy replacement or addition of SIM cards without interrupting the operation of the gateway.
  • Voice over LTE (VoLTE): It supports voice calls over LTE networks, providing high-quality voice communication using the LTE network infrastructure.
  • SMS Application Integration: The gateway offers an HTTP API that allows SMS applications to integrate and communicate with the gateway, enabling interactive SMS services and applications.
  • SMS and Email Integration: It allows for bidirectional communication between SMS and email platforms, enabling the conversion of incoming SMS messages to emails or vice versa.
  • Flexible Dial Rules and Manipulation Rules: The gateway provides flexible dialing and manipulation rules, allowing administrators to configure and customize call routing and number manipulation based on specific requirements.

Product Details



Frequency Bands:

•    GSM VoIP Gateway

850/900/1800/1900MHz

•    LTE VoIP Gateway

A: FDD: B2/B4/B12 WCDMA: B2/B4/B5

E: FDD: B1/B3/B5/B7/B8/B20, TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM:900/1800MHz

J: FDD: B1/B3/B8/B18/B19/B26 TDD: B41 WCDMA: B1/B6/B8/B19

AU: FDD: B1/B2/B3/B4/B5/B7/B8/B28 TDD: B40

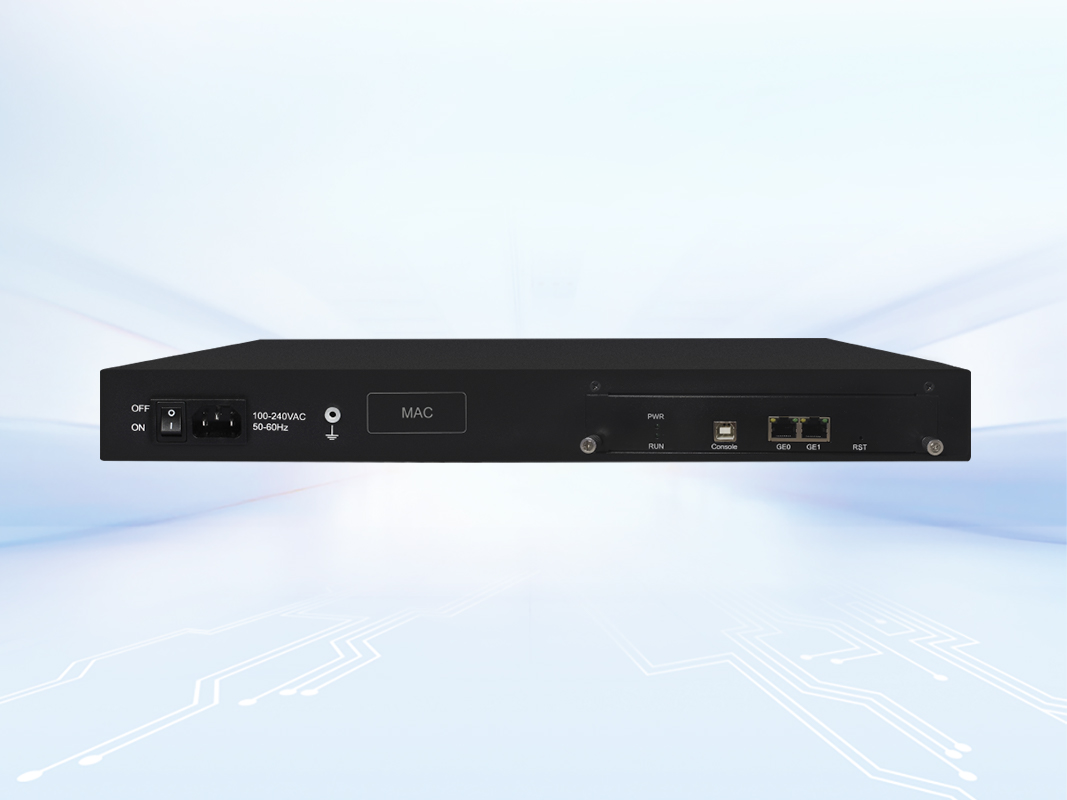

Physical

•    Mobile: 16 Channels

•    SIM Card slots: 16

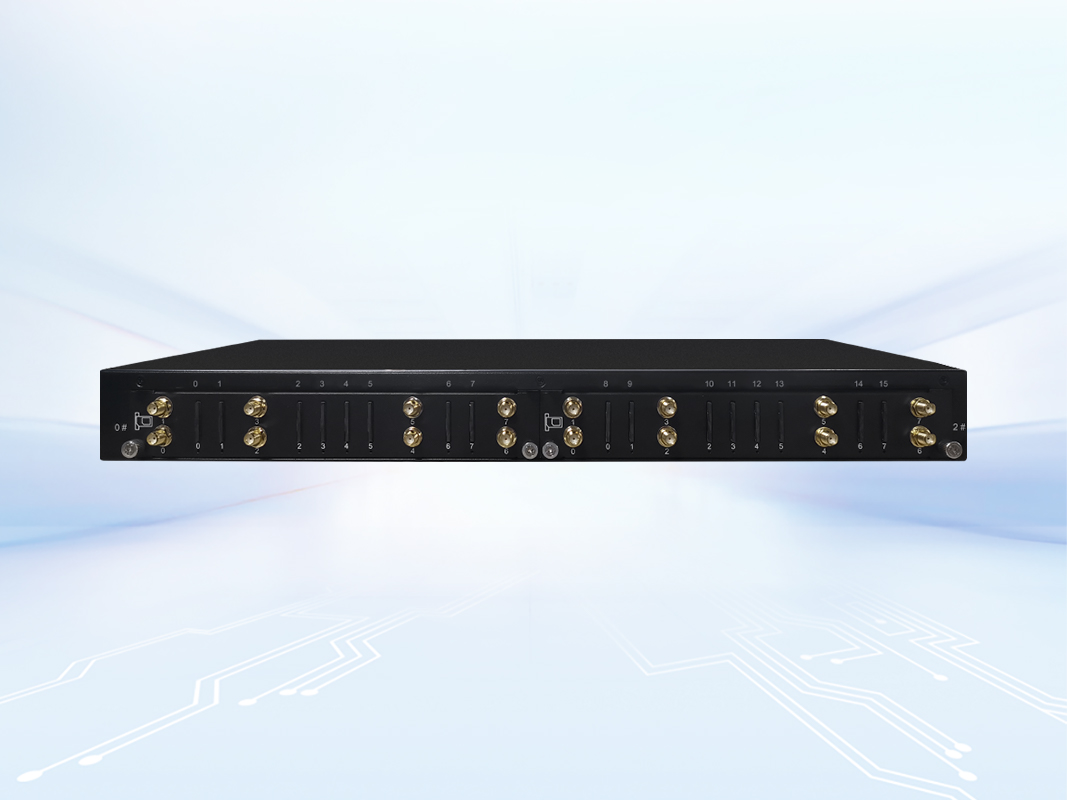

•    Antennas Connectors: SMA

•    Ethernet Interfaces: 2*10/100/1000 Base-T, RJ45

•    LED Indicators:

Power, RUN, Channel indicator

•    Console:

1* RS232 (USB-B connector)

•    RST/PWR Button



VoIP

•    Protocol: SIP v2.0, RFC3261

•    SIP UDP/TCP/TLS

•    RTP/SRTP

•    Codecs:

G.729AB, PCMU, PCMA, G.723.1

•    Silence Suppression

•    Comfort Noise Generator (CNG)

•    Voice Activity Detection (VAD)

•    Echo Cancellation

•    Dynamic Jitter Buffer

•    DTMF: RFC2833, SIP Info

•    Call Progress Tone Generation

•    Programmable Gain Control

•    NAT: STUN, Dynamic NAT, Static NAT



Mobile

•    SMS/USSD/PIN

•    Encoding: Unicode/ASCII

•    HTTP API for SMS

•    SMPP for SMS

•    Polarity Reversal

•    CID/CLIR

•    SMS Send and Receive

•    SMS to Email

•    Email to SMS

•    Auto SMS/Call Generation

•    Call Waiting/Call Back

•    Call Forward

•    Call Conference

•    GSM Audio Coding:

•    HR, FR,EFR, AMR_FR,AMR_HR



Environmental

•    Power Supply: 100-240V,50-60Hz

•    Temperature(Operation): 0 ℃ ~ 40 ℃

•    (Storage): -20 ℃ ~80 ℃

•    Operation Humidity: 10%-90%

•    Dimension(W/D/H): 440×270×75mm
