8 Ports FXS VoIP Gateway

The FXS VoIP Gateway offering seamless connectivity between IP-based telephony networks and legacy telephones (POTS), fax machines and PBX systems. The device offers 8 FXS ports, fax over IP and flexible dial plans.

• Cost effective gateway with 8 FXS ports
• Fax over IP (T.38 and Pass-Through)
• Support IPv4 and IPv6
• TR069 and SNMP
• Multiple codecs: G.711A/U,G.723.1,G.729A/B,AMR,G.726 etc.
• Fully compatible with leading IMS/NGN, SIP based IP telephony system


Product Details



Physical Interfaces

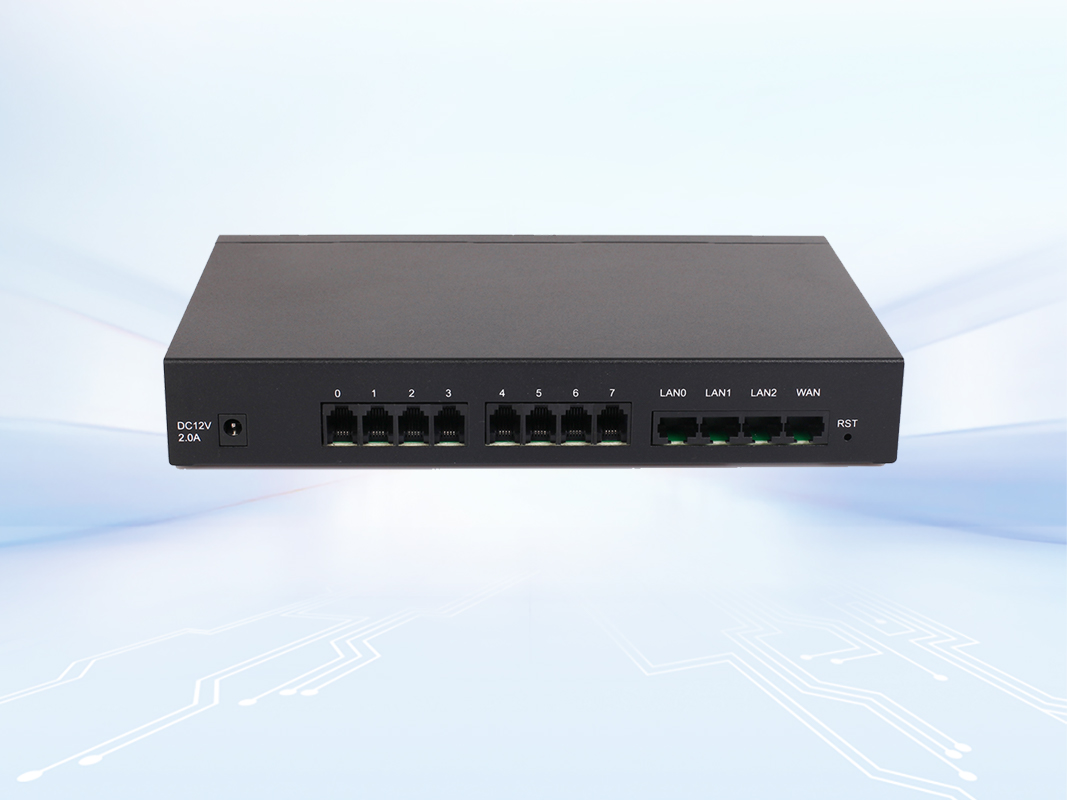

•    8 FXS, RJ11

•    Ethernet Interfaces:

•    1* WAN, 10/100Mbps, RJ-45

•    3* LAN, 10/100Mbps, RJ-45



FXS

•    Connector: RJ11

•    Dial Mode: DTMF and Pulse

•    Pulse: 10 and 20 PPS

•    Caller ID: DTMF/FSK CLI Presentation

•    Max Cable Length: 3km

•    Reversed Polarity

•    Programmable Call Progress Tone



VoIP

•    Protocol:

SIP v2.0 (UDP/TCP),RFC3261

•    SDP,RTP(RFC2833), RFC3262,

•    3263,3264,3265,3515,2976,3311

ETC (3GPP TS24.629), 3891,3892

•    SIP TLS/ SRTP

•    RTP/RTCP, RFC2198, 1889

•    RFC4028 Session Timer

•    RFC3266 IPv6 in SDP

•    RFC2806 TEL URI

•    RFC3581 NAT,rport

•    Primary/backup SIP server

•    Outbound Proxy

•    DNS SRV/ A Query/NATPR Query

Early Media/Early Answer

•    NAT:STUN, Static/Dynamic NAT



Supplement Service

•    Call Waiting

•    Blind Transfer

•    Attend Transfer

•    Call Forward on Busy

•    Call Forward on No Reply

•    Unconditional Call Forward

•    Warm/Immediately Hotline

•    Call Hold

•    Do-not-disturb

•    3-Way Conference

•    Message Waiting Indicator

•    Speed Dial



Environmental

•    Power Supply:

100-240VAC, 50-60 Hz@DC12V 2A

•    Power Consumption:18W(Typical)

•    Operating Temperature:0 ℃ ~ 45 ℃

•    Storage Temperature: -20 ℃ ~80 ℃

•    Humidity:10%-90% non-Condensing

•    Dimensions(W/D/H): 242*152*40mm

•    Unit Weight: 1kg
