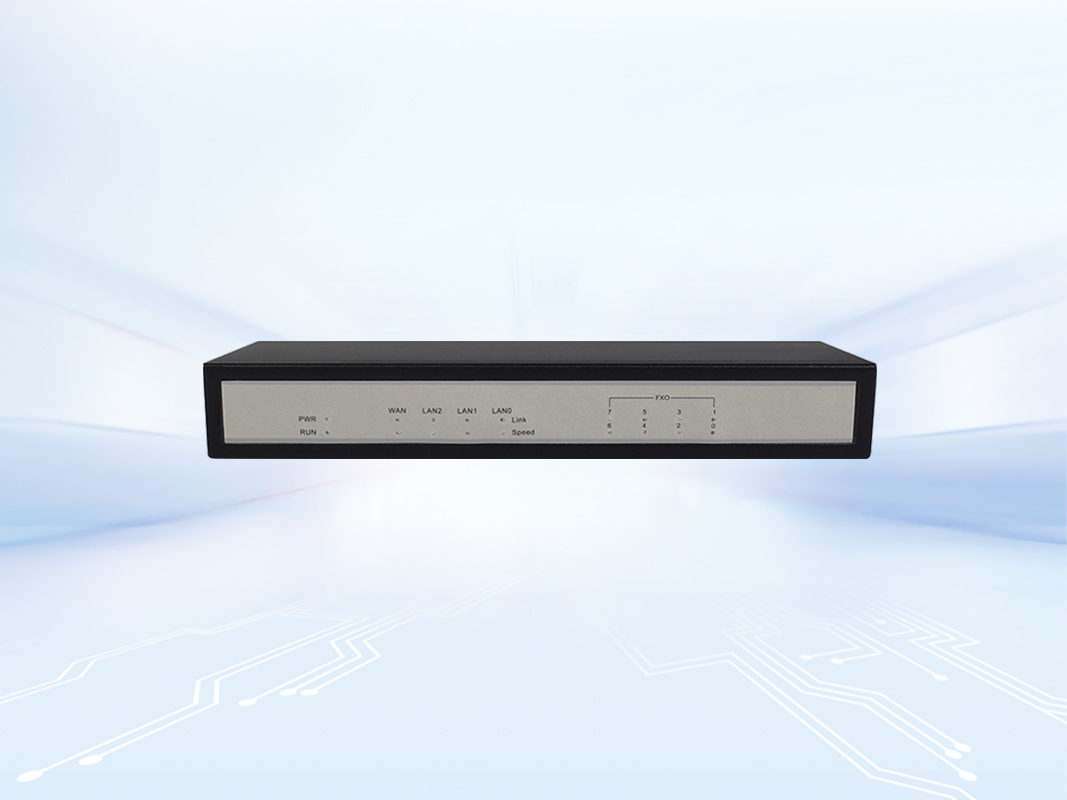

8 Ports FXO VoIP Gateway

The FXO VoIP Gateway is a type of access gateway offering seamless connectivity between IP-based telephony networks and legacy telephones (POTS) and PBX systems. The gateway has 8 FXO ports and is used to connect to analog PBX or the PSTN lines of telecom carriers.

• Cost effective gateway with 8 FXO ports
• Fax over IP (T.38 and Pass-Through)
• Support IPv4 and IPv6
• TR069 and SNMP
• Multiple codecs: G.711A/U,G.723.1,G.729A/B,AMR,G.726 etc.
• Fully compatible with leading IMS/NGN, SIP based IP telephony system


Product Details

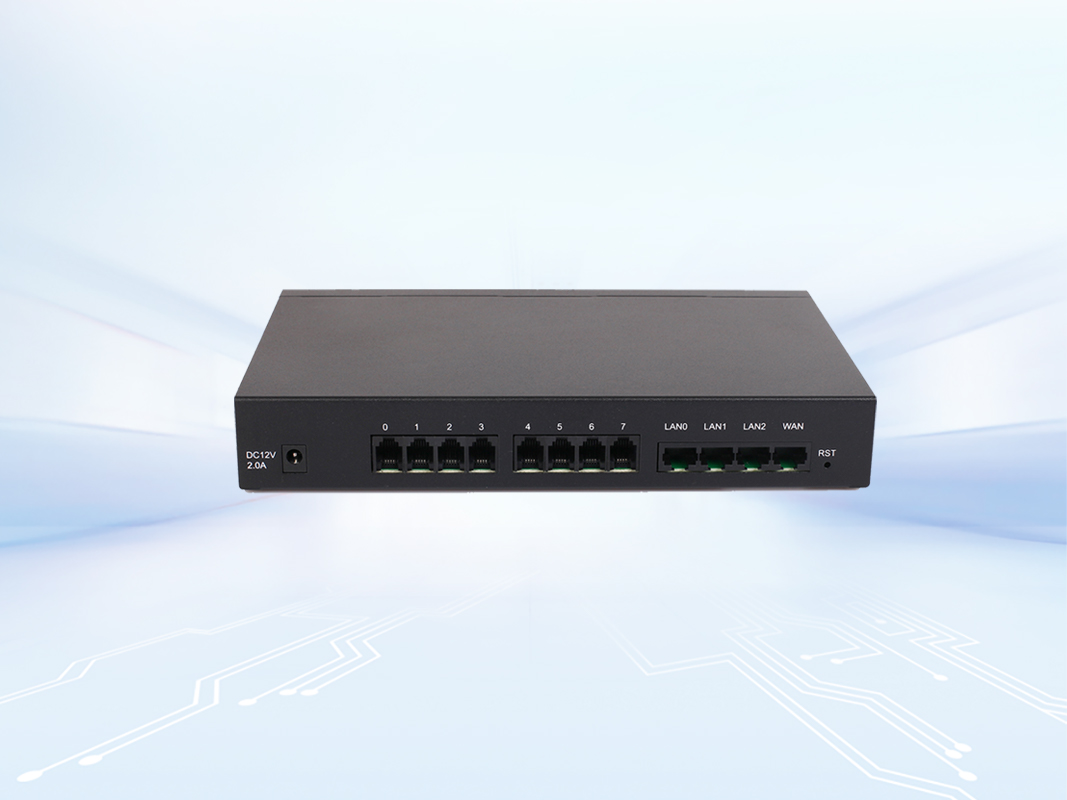

Physical Interfaces

•    8 FXO, RJ11

•    Ethernet Interfaces:

•    1* WAN, 10/100Mbps, RJ-45

•    3* LAN, 10/100Mbps, RJ-45



FXO

•    Connector: RJ11

•    Dial Mode: DTMF/Pulse Dialing

•    Caller ID: FSK, DTMF

•    Polarity Reversal

•    Answer Delay

•    Busy Tone Detection

•    No Current Detection

VoIP

•    Protocol:

SIP v2.0 (UDP/TCP),RFC3261

•    SDP,RTP(RFC2833), RFC3262,

•    3263,3264,3265,3515,2976,3311

ETC (3GPP TS24.629), 3891,3892

•    SIP TLS/ SRTP

•    RTP/RTCP, RFC2198, 1889

•    RFC4028 Session Timer

•    RFC3266 IPv6 in SDP

•    RFC2806 TEL URI

•    RFC3581 NAT,rport

•    Primary/backup SIP server

•    Outbound Proxy

•    DNS SRV/ A Query/NATPR Query

Early Media/Early Answer

•    NAT:STUN, Static/Dynamic NAT



Software Features

•    Port Group

•    Web ACL

•    Telnet ACL

•    Action URL

•    Digitmap

•    Routing Rules based Prefixes

•    Caller/Called Number

•    Manipulation

•    Speed Dial



Environmental

•    Power Supply:

100-240VAC, 50-60 Hz@DC12V 2A

•    Power Consumption:18W(Typical)

•    Operating Temperature:0 ℃ ~ 45 ℃

•    Storage Temperature: -20 ℃ ~80 ℃

•    Humidity:10%-90% non-Condensing

•    Dimensions(W/D/H): 242*152*40mm

•    Unit Weight: 1kg
