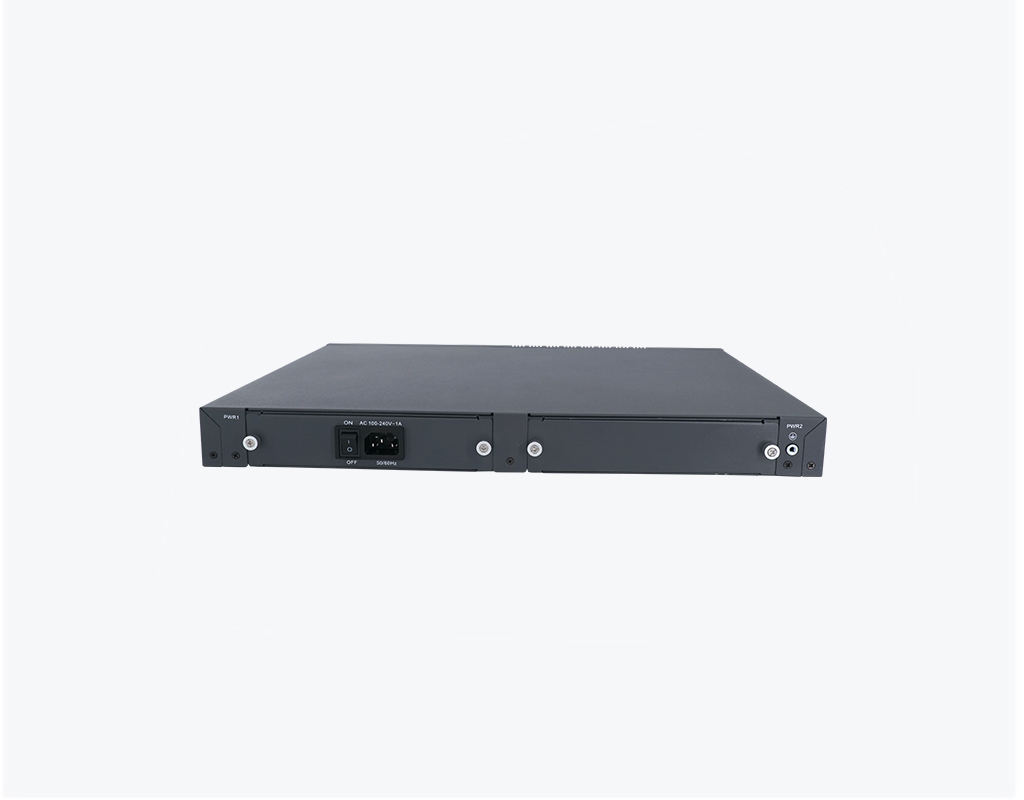

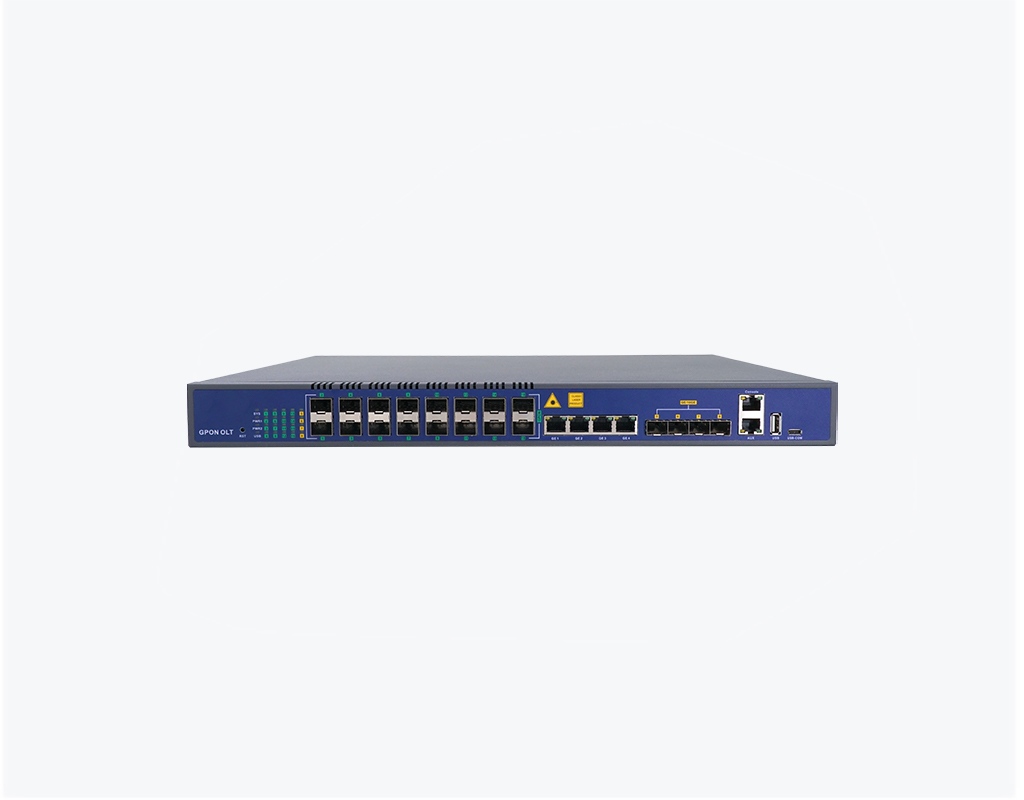

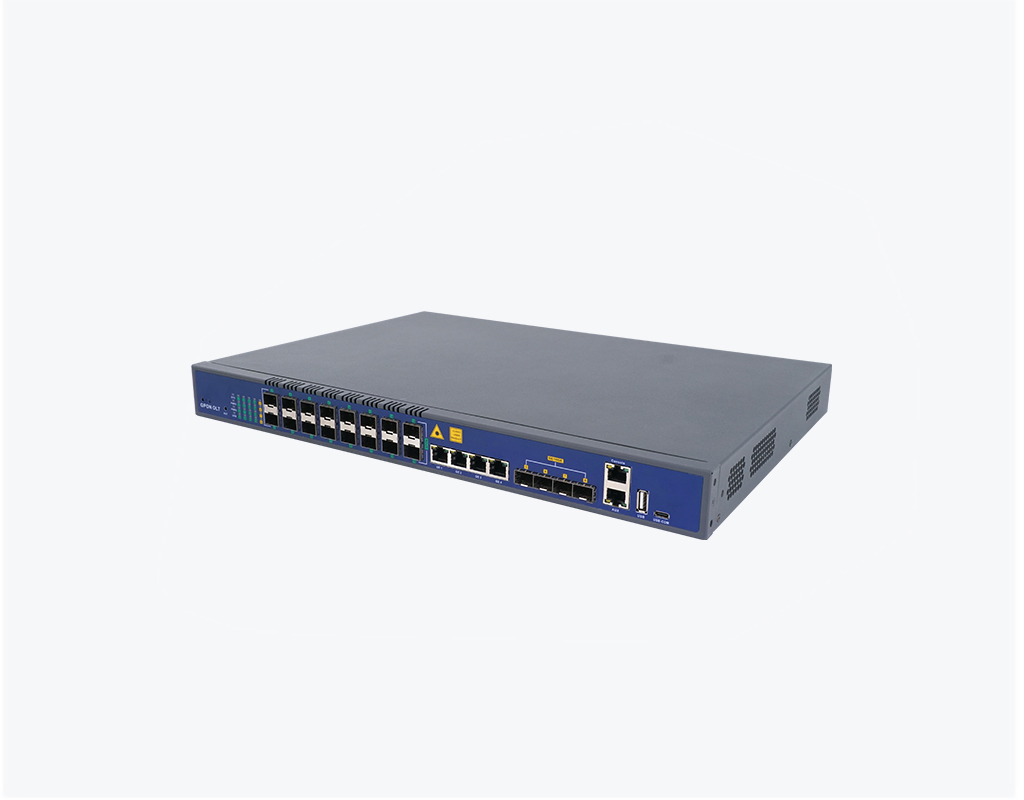

16 PORTS GPON OLT

V1600G2-B is a pizza-box GPON OLT with 16 PON ports that meets flexible and fast FTTx access, suiting the scenarios such as sparse/ remote/cost-sensitive area,smart industrial park, commercial building and FTTM, etc.

Compact design, meets various application scenarios

Supports the deployment in diverse scenarios including low density areas, remote areas, sparsely-populated areas and industry parks.

Supports FTTM and sharing site/rack with wireless base stations.

Small size and lightweight, easier to delivery and install

Small size and lightweight, easy to transport and install.

Supports multiple installation modes, like limited room space,basement, low-voltage room and small rack or cabinet

Carrier-class security protection, support dynamic routing protocol RIP&OSPF, ensure the safe operation of network

Supports uplink redundancy protection including LACP STP,RSTP and MSTP, and support RIP&OSPF protocol.  Supports link protection.

Lower TCO

Dramatically saves on investment fees in trunk fibers, pipe engineering, and facilities.  Effectively reduce CapEx and OpEx.



Quick Details of V1600G2-B GPON OLT



GPON Ports

  • 16 GPON OLT SFP slots
  • Up to 2.5Gbps downstream and 1.25Gbps upstream
  • Maximum transfer distance of up to 20km
  • Each PON port supports up to 128 ONT/HGU
  • Compliant with G.984/G.988

GPON Function

•    Tcont DBA

•    Gemport traffic

•    In compliant with ITU-T984.x standard

•    Up to 20KM transmission Distance

•    Support data encryption, multi-cast, port VLAN, separation, RSTP, etc

•    Support ONT auto-discovery/link

•    Support VLAN division and user separation to avoid broadcast storm

•    Support power-off alarm function, easy for link problem detection

•    Support broadcasting storm resistance function

•    Support port isolation between different ports

•    Support ACL and SNMP to configure data packet filter flexibly

•    Specialized design for system breakdown prevention to maintain stable system

•    Support RSTP, IGMP Proxy



DHCP

•    DHCP server,DHCP relay,DHCP snooping

•    DHCP option82



Layer2 Switch

•    32K Mac address

•    Support 4096 VLANs

•    Support port VLAN and protocol VLAN

•    Support VLAN tag/Un-tag, VLAN  transparent transmission

•    Support VLAN translation and QinQ

•    Support storm control based on port

•    Support port isolation

•    Support port rate limitation

•    Support 802.1D and 802.1W

•    Support static LACP,Dynamic LACP

•    QoS based on port, VID, TOS and MAC  address

•    Access control list

•    IEEE802.x flowcontrol

•    Port stability statistic and  monitoring



Layer 3 Route

•    ARP proxy

•    4096 hardware Host Routes,512 hardware Subnet Routes

•    Support 802.1X, Radius, Tacacs+

•    Support IP source guard

•    Support static route, dynamic route RIP v1/v2, RIPng and OSPF v2/v3;



IPv6

•    Support NDP;

•    Support IPv6 Ping, IPv6 Telnet, IPv6 routing;

•    Support ACL based on source IPv6 address, destination IPv6 address, L4 port, protocol type, etc;

•    Support MLD v1/v2 snooping (Multicast Listener Discovery snooping)



Multicast

•    IGMP snooping

•    2048 IP Multicast Groups;



Management Function

•    SNMP, Telnet, CLI, WEB, SSH v2;

•    Fan Group Control

•    Port Status monitoring and configuration management

•    Online ON configuration and management

•    User management

•    Alarm management



Dimension (L*W*H)

•    442mm*320mm*43.6mm

Weight

•    Net weight of single power: 2.95kg

•    Gross weight of single power: 4.15kg

Power Consumption

•    85W

Working Temperature

•    0°C ~+50°C

Storage Temperature

•    -40~+85°C

Relative Humidity
