16 Ports FXO VoIP Gateway

The FXO VoIP Gateway is a type of access gateway offering seamless connectivity between IP-based telephony networks and legacy telephones (POTS) and PBX systems. The gateway has 16 FXO ports and is used to connect to analog PBX or the PSTN lines of telecom carriers.

• Cost effective gateway with 16 FXO ports
• Fax over IP (T.38 and Pass-Through)
• Support IPv4 and IPv6
• TR069 and SNMP
• Multiple codecs: G.711A/U,G.723.1,G.729A/B,AMR,G.726 etc.
• Fully compatible with leading IMS/NGN, SIP based IP telephony system


Product Details

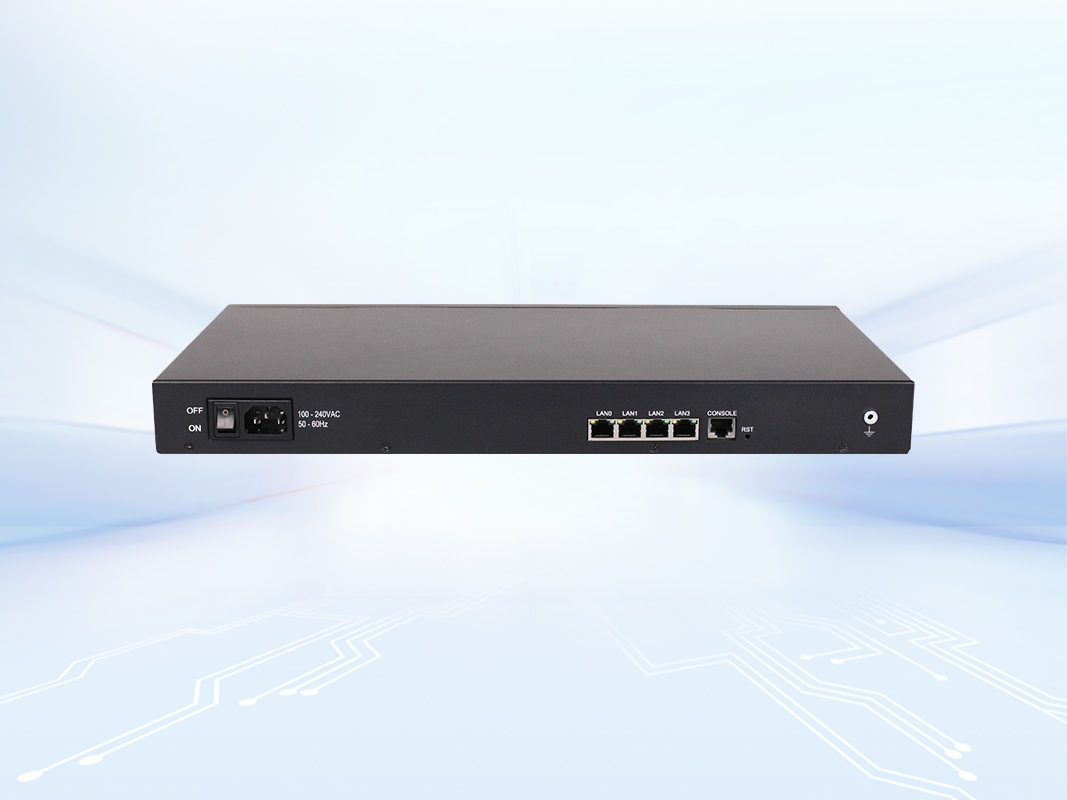

Physical Interfaces

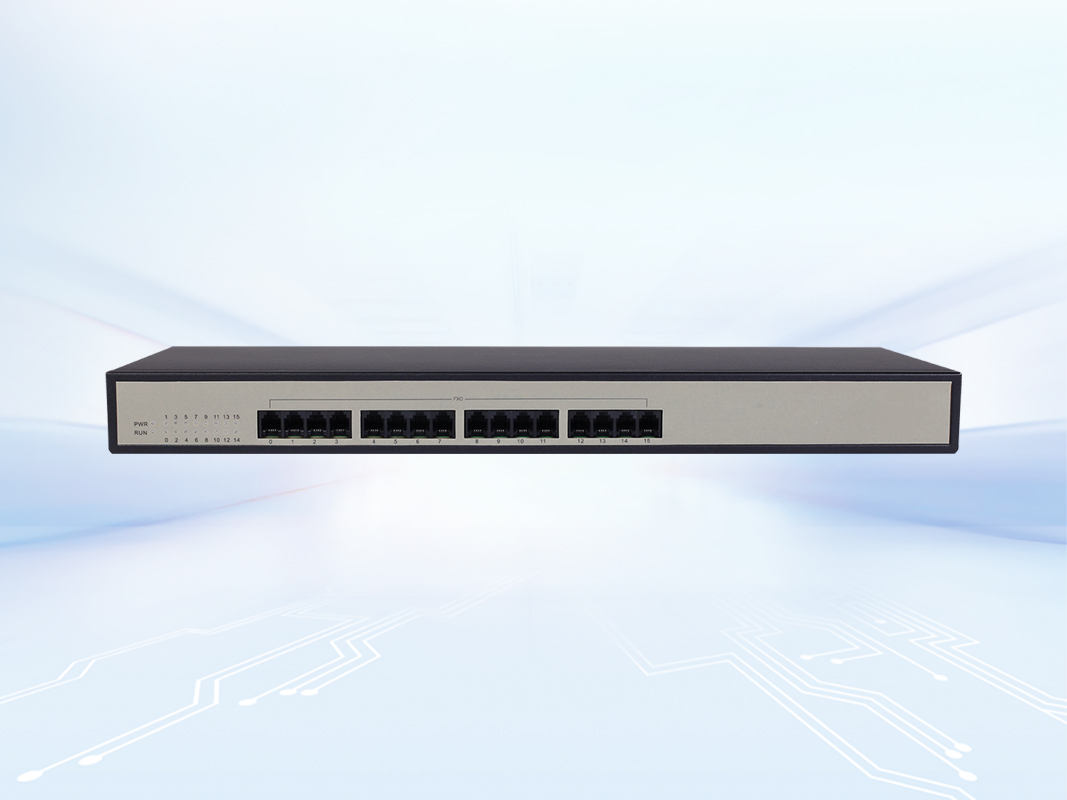

•    16 FXO, RJ11

•    Ethernet Interfaces:

•    4* LAN, 10/100Mbps, RJ-45



FXO

•    Connector: RJ11

•    Dial Mode: DTMF/Pulse Dialing

•    Caller ID: FSK, DTMF

•    Polarity Reversal

•    Answer Delay

•    Busy Tone Detection

•    No Current Detection

VoIP

•    Protocol:

SIP v2.0 (UDP/TCP),RFC3261

•    SDP,RTP(RFC2833), RFC3262,

•    3263,3264,3265,3515,2976,3311

ETC (3GPP TS24.629), 3891,3892

•    SIP TLS/ SRTP

•    RTP/RTCP, RFC2198, 1889

•    RFC4028 Session Timer

•    RFC3266 IPv6 in SDP

•    RFC2806 TEL URI

•    RFC3581 NAT,rport

•    Primary/backup SIP server

•    Outbound Proxy

•    DNS SRV/ A Query/NATPR Query

Early Media/Early Answer

•    NAT:STUN, Static/Dynamic NAT



Software Features

•    Port Group

•    Web ACL

•    Telnet ACL

•    Action URL

•    Digitmap

•    Routing Rules based Prefixes

•    Caller/Called Number

•    Manipulation

•    Speed Dial



Environmental

•    Power Supply:

100-240VAC, 50-60 Hz

•    Power Consumption:30W(Typical)

•    Operating Temperature:0 ℃ ~ 45 ℃

•    Storage Temperature: -20 ℃ ~80 ℃

•    Humidity:10%-90% non-Condensing

•    Dimensions(W/D/H): 440*230*44mm

•    Unit Weight: 2.7kg
